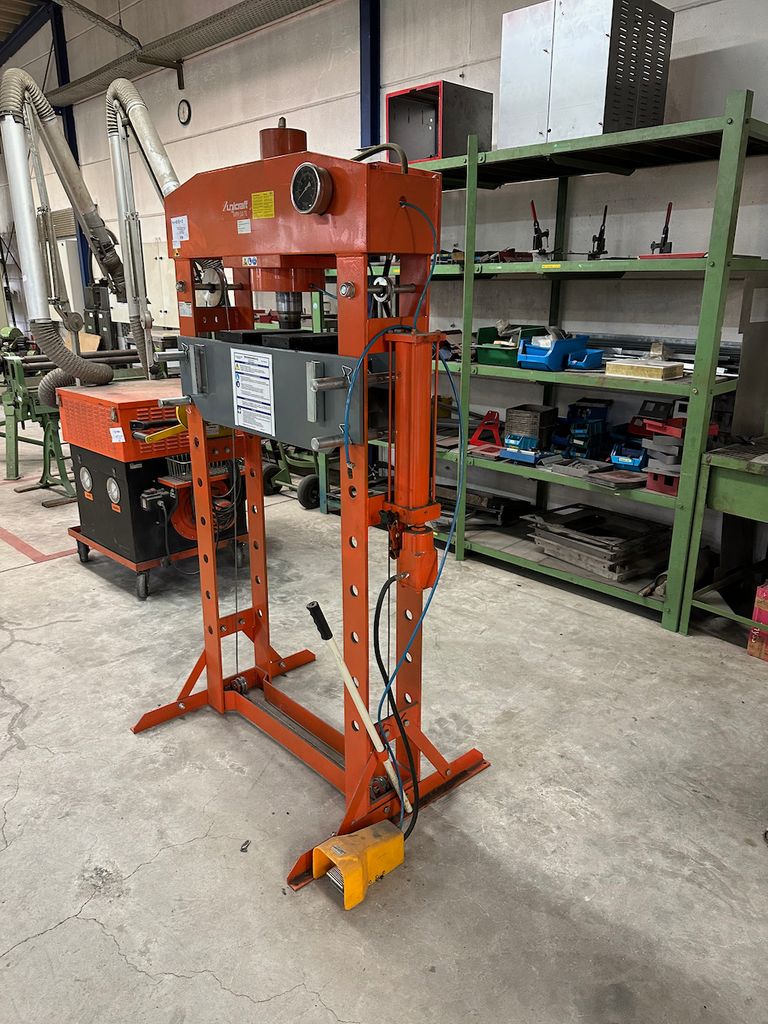

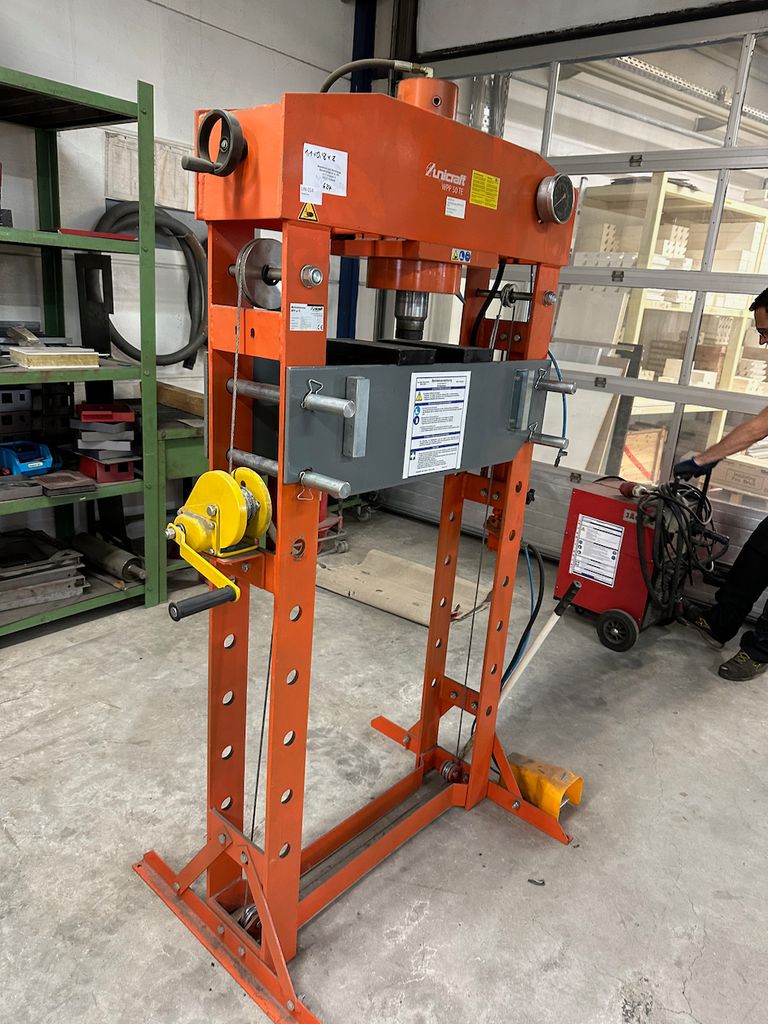

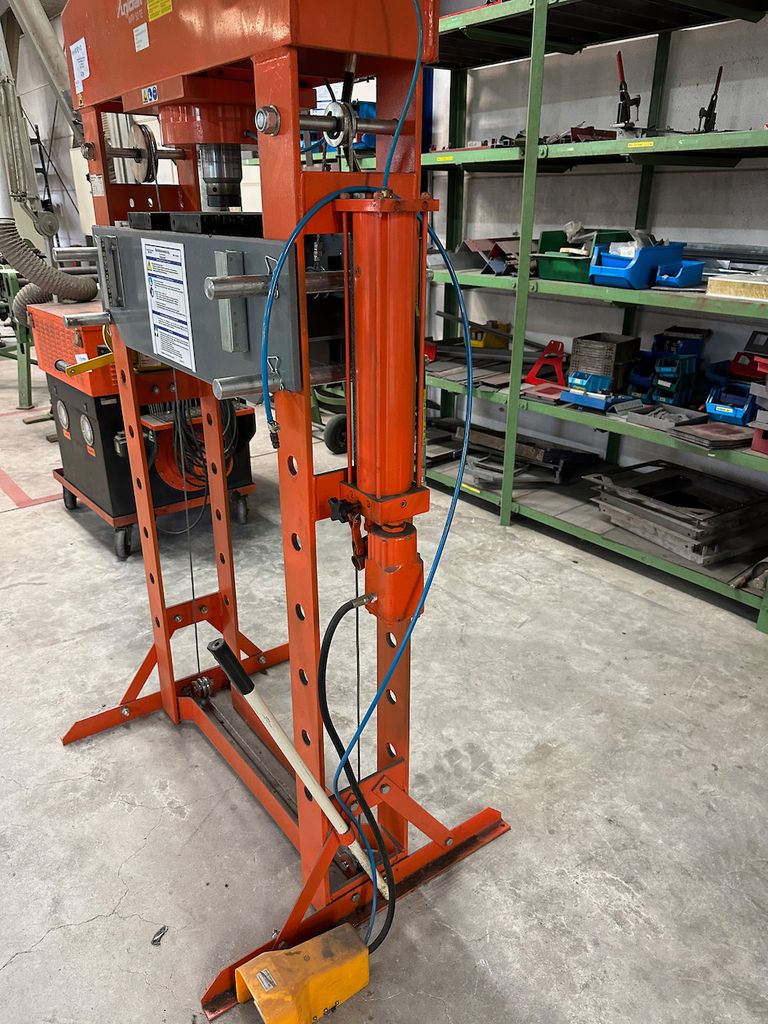

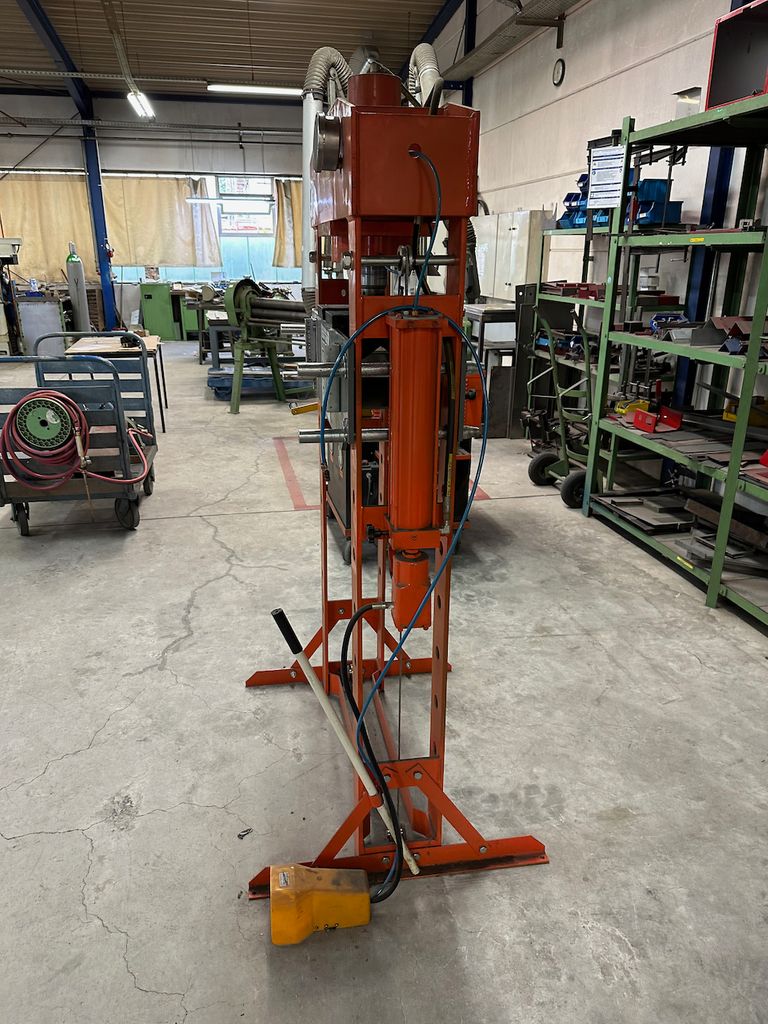

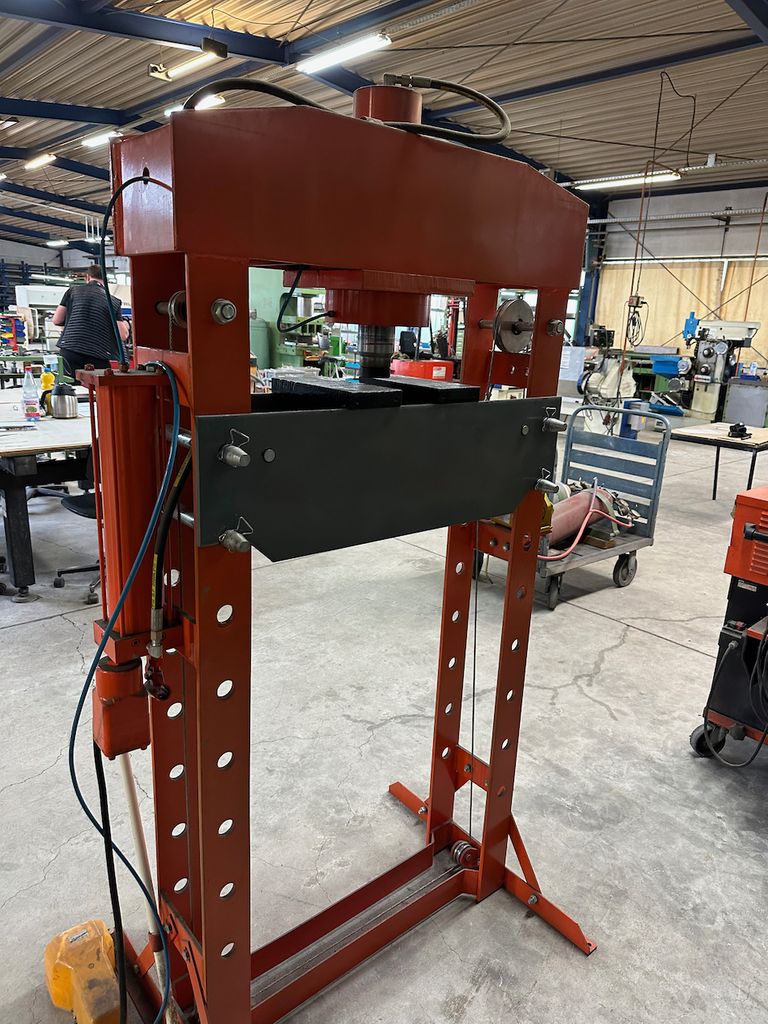

Unicraft - WPP 50 TE - Hydraulic Workshop Press 50T

950.00 EUR

Status: Available

Technical Data

Pressing force: 50 t
Piston stroke: 200 mm
Piston travel: 245 mm
Piston diameter: 75 mm
Clear width: 730 mm
Min. clear height: 69 mm
Max. clear height: 1048 mm
Hole spacing for table height adjustment: 140 mm
Frame depth: 207 mm
Base width/depth: 800 mm
Length (approx.): 1030 mm
Width/depth (approx.): 800 mm
Height (approx.): 1877 mm
Weight (approx.): 302.5 kg
Air consumption (approx.): 200 l/min
Pneumatic operating pressure: 7.5 – 8.5 bar
