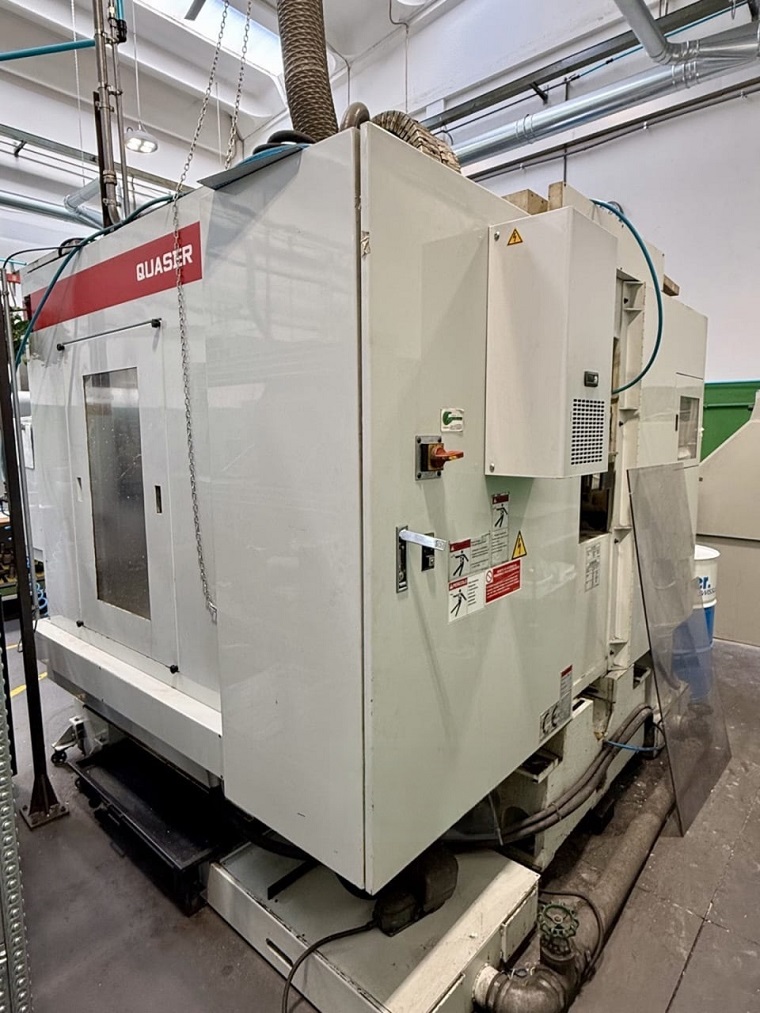

VERTICAL MACHINING CENTER QUASER MV204II / 10

19,500.00 EUR

Status: Available

Make: QUASER

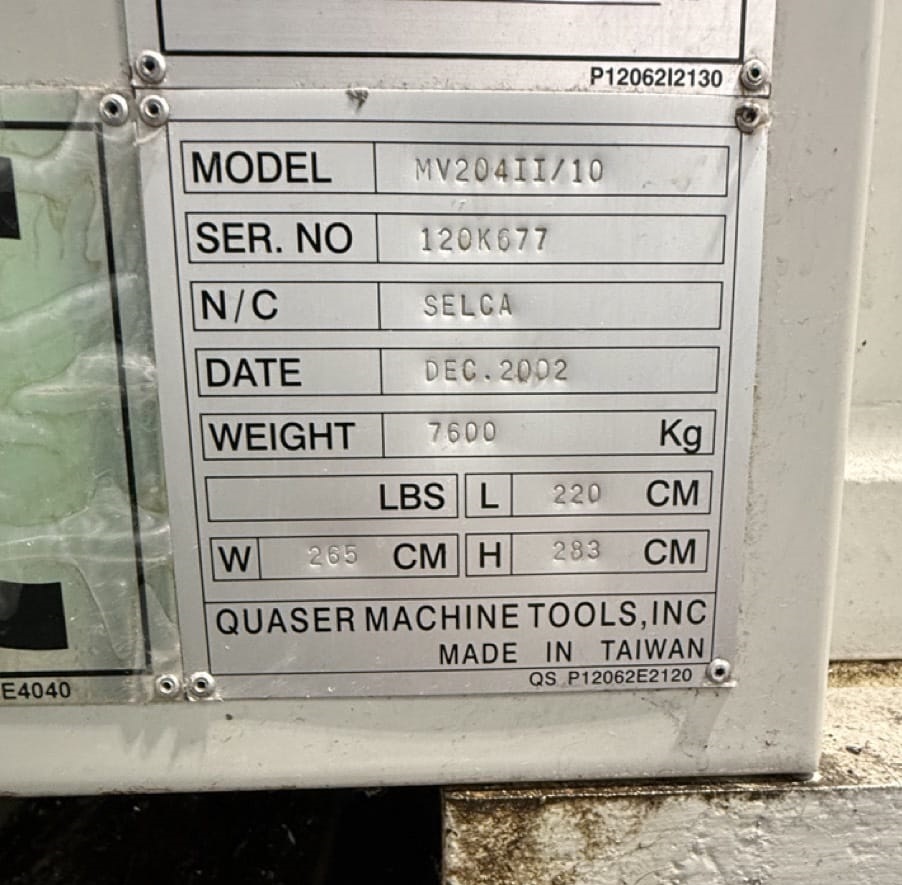

Model: Mv 204II / 10

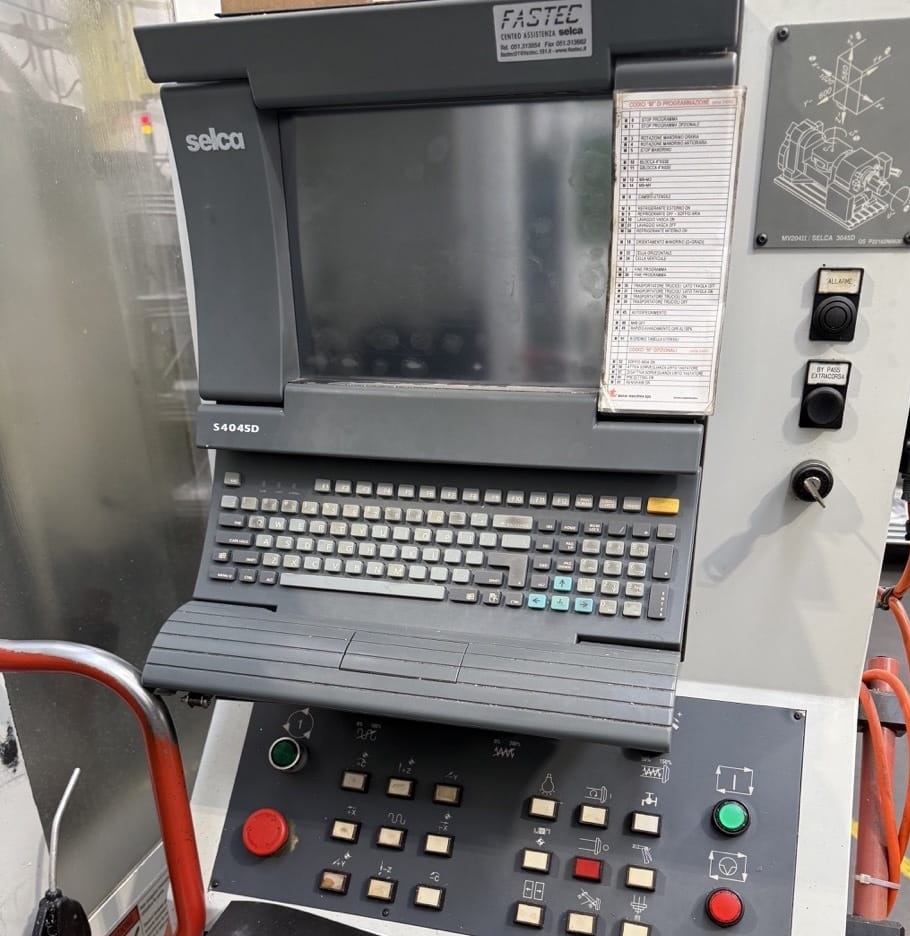

CNC: SELCA 4045
Y.O.M. : 2002
Axis Travel:

X (Longitudinal movement of column): 1020 mm
Y (Cross movement column): 600 mm
Z (Vertical movement of spindle head): 560 mm
Table:

Table size:1020×550 mm
Table loading capacity: 300kg x2
Spindle:

Max. Spindle speed: 10000 min^-1
Type of spindle taper hole: ISO 40/BT40
Tool storage capacity: 32
Mass of machine: 8500 kg
