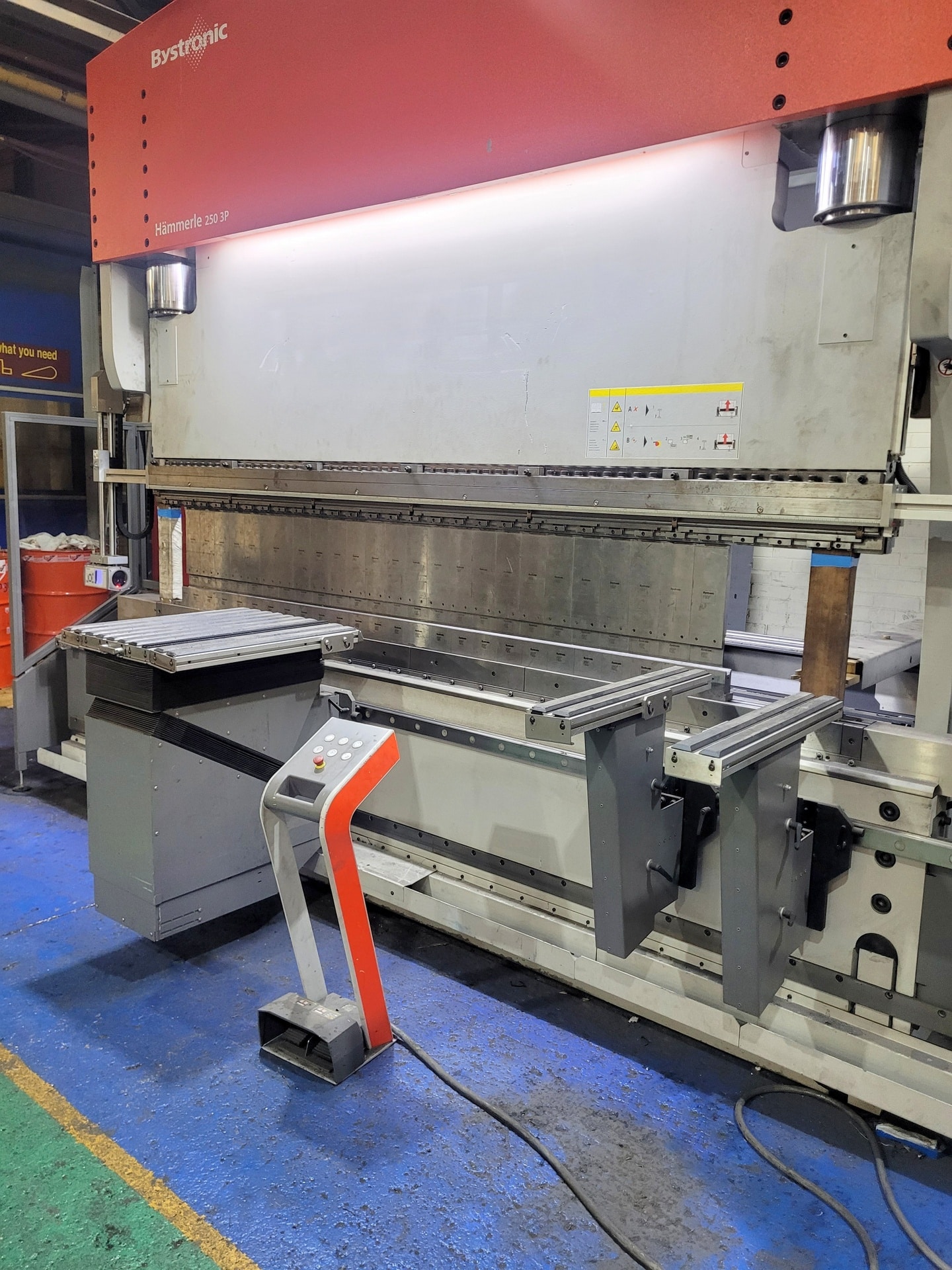

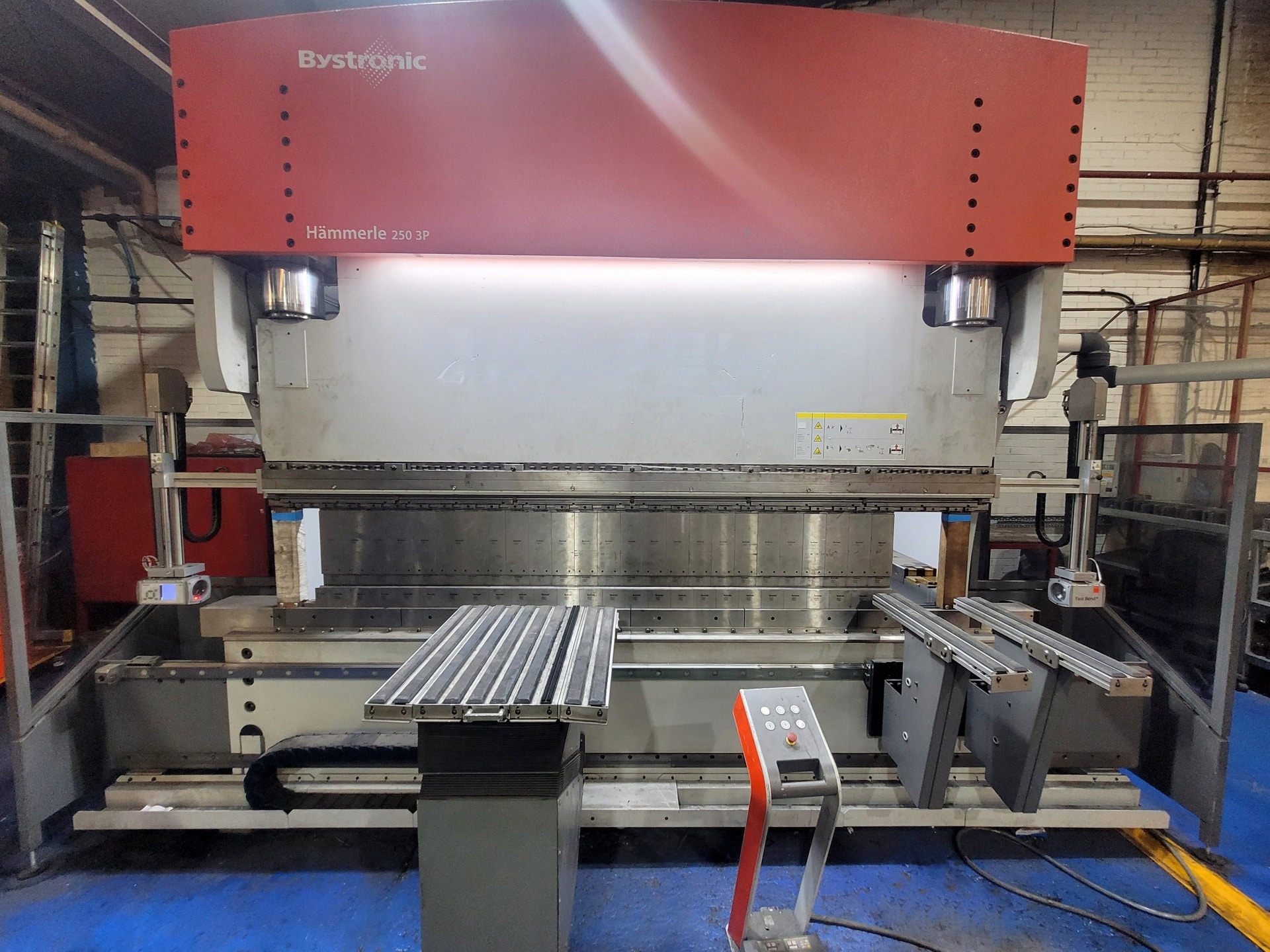

2015 HAMMERLE 250 3P Press Brake Under 10.000 Hours

9,900.00 EUR

Status: Available

CNC control: BYSTRONIC ByVision
maximum press force: 250 t (2500 kN)
maximum workpiece length: 3100 mm
slider stroke: 400 mm
approach speed: 180 mm/s
bending speed: 10 mm/s
return speed: 150 mm/s

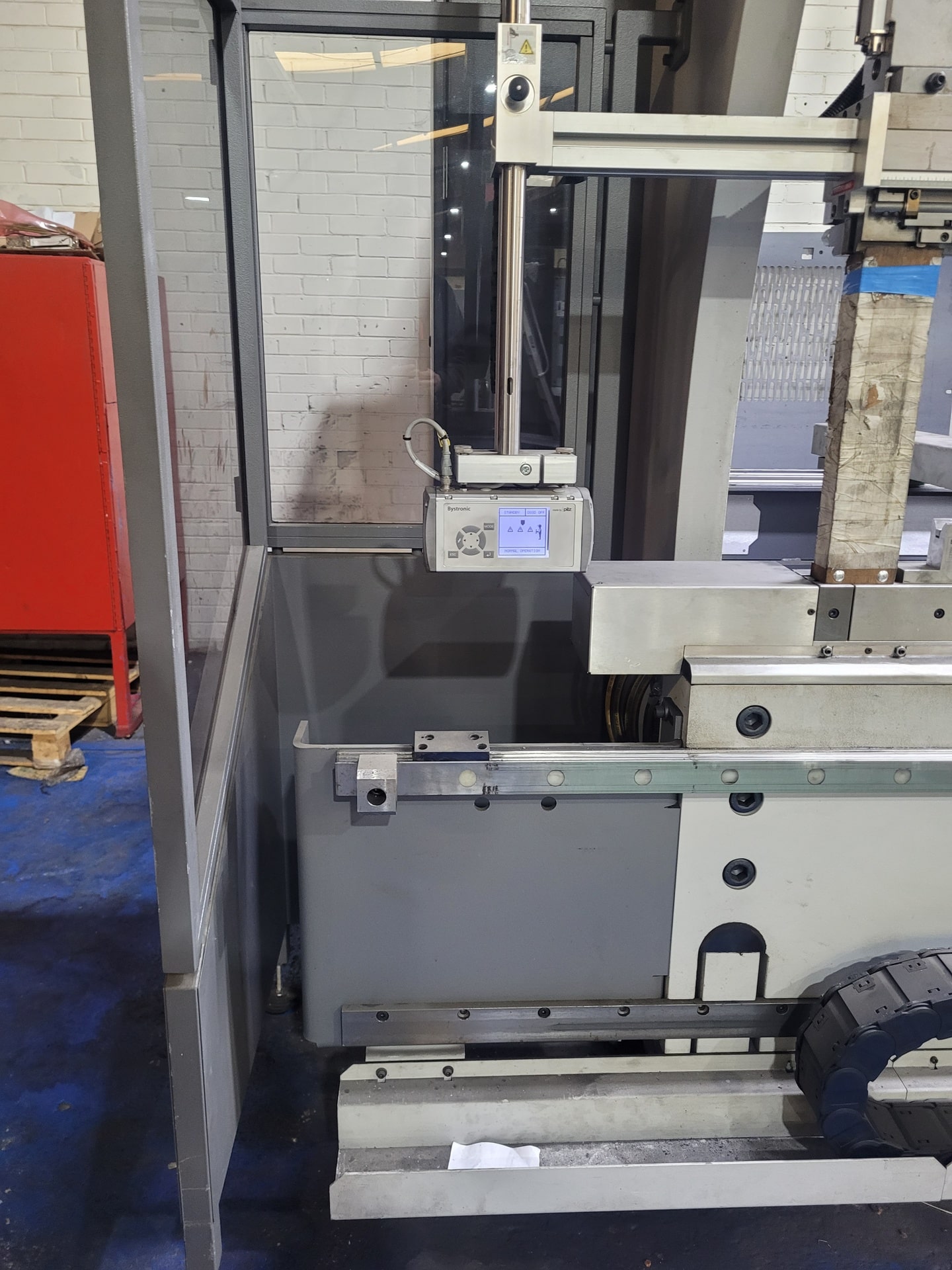

laser safety system: Fast Bend +
foot switch
tooling (top tools, bottom tools, holders)
maximum pneumatic operating pressure: 8 bar
maximum hydraulic operating pressure: 305 bar
main motor power: 30 kW
power supply: 3x 400 V; 50 Hz
dimensions (L x W x H): 5000 x 3000 x 3500 mm
weight of machine: 20500 kg

Included Tooling & Hardware

• Full Tooling Package: Comes complete with a comprehensive set of segmented top tools (punches), bottom tools (dies), and specialized holders tailored for the 3-point system.
• WILA-Standard Hydraulic Upper Clamping: Built-in hydraulic punch holders designed for fast tool changes.
• High-Accuracy 3-Point Lower Tool Holder: Features the integrated multi-wedge base adjustment system to precisely dial in bottom-die geometry.

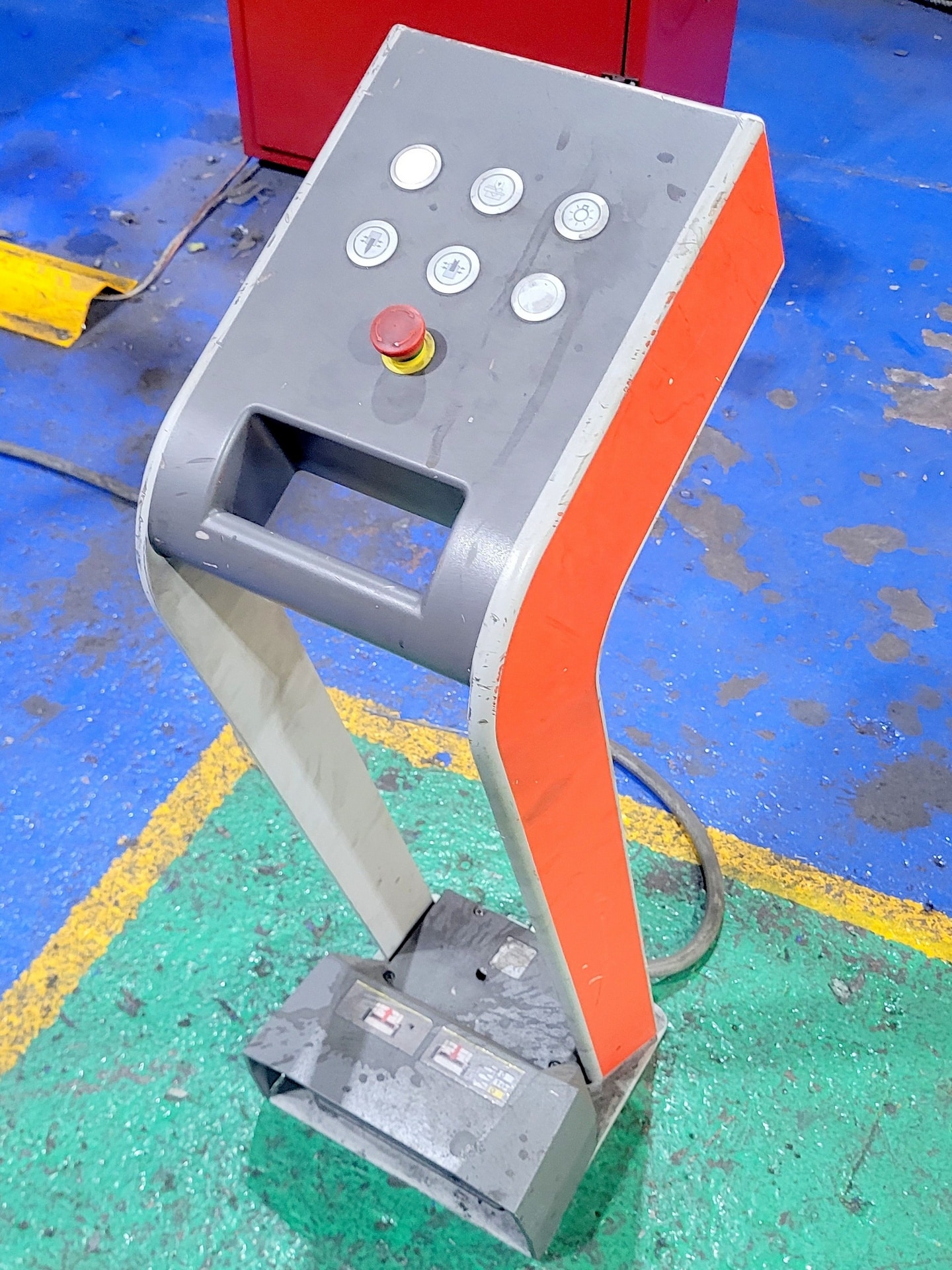

• Wandering Foot Pedal Console: A mobile operator foot-switch controller used to actuate the press cycles safely from the front of the machine.
